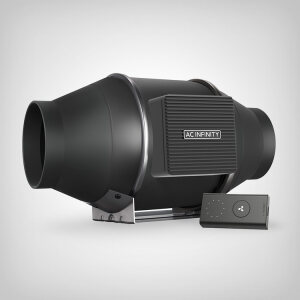

AC Infinity CLOUDLINE PRO S4, Quiet Inline Fan with Speed Controller

For low-noise and individually adjustable ventilation of grow tents

The smart ventilation for your grow tent: The Infinity CLOUDLINE PRO S4 offers individual adjustment of the air flow with the ten levels of the speed controller. The inline mixed flow design maintains the desired strength even at high static pressure. During operation, the ventilation unit is quiet and energy-efficient - thanks to the PWM-controlled EC motor, which regulates the air flow precisely. With its air flow of 350m3/h, the inline fan system is suitable for grow tents up to a maximum of 90 x 60 x 180 cm.

You can also use this fan with a limited air flow rate: Thanks to its special design with stator guide vanes and two hydrodynamic flow circuits, it ensures effective ventilation for your plants even then. The motor is equipped with double ball bearings and can be mounted in any direction. The device is protected against dust and moisture in accordance with IP44 and is therefore suitable for a wide variety of rooms. Cleaning is also very easy thanks to the removable housing.

With intelligent control and backup service for comprehensive security

The intelligent control system makes the Infinity CLOUDLINE PRO S4 even easier and more convenient to use: it offers you programmable climate and time functions and can be connected to controllers on the UIS™ platform. The integrated backup memory also guarantees you greater security in the event that the power supply to the device is interrupted: The last speed setting remains saved even then.

Technical details

• Connection: 100 mm
• Dimensions: 18.8 x 30.3 x 17.6 cm
• Cable length to controller: 6 m
• Total air flow: 348 m3/h
• Operating noise: 28 dBA
• Maximum revolutions: 2800 rpm
• Static air pressure: 223 Pa
• Electrical voltage: 100 - 240 V (50/60 Hz)
• Maximum power: 28 W
• Average power: 21 W
• Current: 0.4 A
• Plug: Euro plug
• Humidity range: 35 - 85%
• Temperature range: 0 - 60 ℃
• Protection class: IP44
• Lifetime: 67. 000 hours
• Certifications: CE, RoHS, ETL
