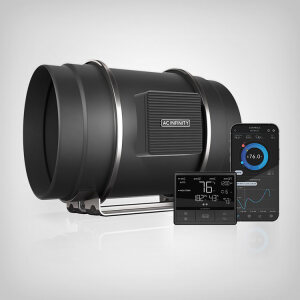

AC Infinity CLOUDLINE PRO T8, Quiet Inline Fan with Temperature & Humidity Control, 200mm

Powerful inline fan system with smart controller

Efficient and quiet ventilation for large grow tents and indoor cultivation rooms: The Infinity CLOUDLINE S8 inline fan system impresses with its quiet and energy-efficient operation. The speed controller allows you to individually adjust the performance in ten stages to suit the requirements of your grow. The fan is run by a powerful EC motor, which precisely regulates the airflow thanks to its PWM control. This design guarantees quiet operation and prevents motor damage. The inline mixed-flow design allows the fan to maintain airflow even at high static pressures. The fan can even be used in areas with limited air flow: the mixed flow design with stator guide vanes and two hydrodynamic flow circuits ensure efficient operation even in these conditions.

Versatile control options with the Smart Controller

The ventilation system is controlled by the CONTROLLER 69 PRO, which allows you to program everything intelligently: Not only are there temperature, humidity, and VPD triggers—you can also set dynamic fan speeds to respond to changes. You can even set a minimum speed, which is then only increased when necessary. The various timer, cycle, and schedule modes offer additional options for completely customized settings depending on the requirements of your grow. And with the AC Infinity app, you can connect to the system from anywhere via WiFi, adjust the controls, switch programs, set notifications, and use other functions. The controller can be connected to up to four UIS devices – for example, from the CLOUDLINE, CLOUDRAY, and IONFRAME series – and with the appropriate adapters, connection to devices outside the UIS platform is also possible.

The motor can be mounted in any direction and is equipped with double ball bearings. The housing can be easily removed for maintenance and cleaning, and the device is protected against dust and moisture thanks to its IP44 certification. The system is suitable for grow tents measuring 150 x 150 x 200 cm or larger.

Technical Details:

• Connection: 200 mm
• Dimensions: 21.7 x 30.2 x 12.3 cm
• Cable length to controller: 3.05 m
• Controller dimensions: 13.2 x 7.4 x 2.7 cm
• Total air flow: 1371 m3/h
• Operating noise: 39 dBA
• Static air pressure: 746 Pa
• Electrical voltage: 100–240 V (50/60 Hz)
• Maximum power: 180 W
• Average power: 78 W
• Current: 0.75 A
• Plug: Euro plug
• Humidity range: 35–85%
• Temperature range: 0–60°C
• Protection class: IP44
• Service life: 67,000 hours
