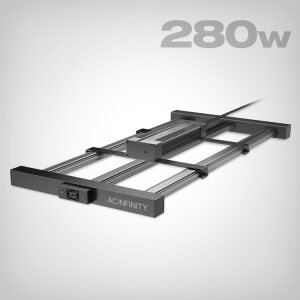

AC Infinity IONFRAME EVO3 Grow LED, 280W

Better light quality thanks to the latest technology

Latest lighting technology with innovative control: The AC Infinity IONFRAME EVO3 provides you with efficient light that stimulates intensive growth in your plants. The grow lamp has built-in Samsung LM301H EVO light-emitting diodes, which have significant advantages over diodes without EVO: With a higher blue spectrum and better efficiency, they offer significantly optimized light quality, which has a positive effect on growth. The Samsung EVO diodes are supported by 395 nm UV diodes, 660 nm OSRAM red diodes, and 730 nm OSRAM red diodes to cover the entire light spectrum.

Easy control via timer and app – also remotely via app

The AC Infinity IONFRAME EVO 3 is equipped with a digital timer that offers you even more options for natural light control: You can adjust the grow light in ten brightness levels and create a schedule for a sunrise and sunset function. With the UIS platform, these and other functions can be controlled even more conveniently via the AC Infinity app via WiFi. Another advantage is the removable driver, which can be mounted away from the lamp to optimize heat dissipation. The AC Infinity IONFRAME EVO 3 is designed for a maximum area of 120 x 60 cm and, with its IP65 certification, can also be used in damp rooms.

Technical Details:

• Dimensions: 41.0 x 83.0 x 7.7 cm
• Power supply dimensions: 18.2 x 4.0 cm
• Maximum illuminated area: 120 x 60 cm
• Diodes: Samsung LM301H EVO
• Total number of LEDs: 840
• Number of EVO 3000K LEDs: 537
• Number of EVO 5000K LEDs: 270
• Number of Seoul 395 nm LEDs: 3
• Number of OSRAM 660 nm LEDs: 27
• Number of OSRAM 730 nm LEDs: 3
• Power supply (driver): SOSEN-320W
• Efficiency: 3.14 µmol/j
• Spectrum: 395 nm, 660 nm, 730 nm, 3000 K, 5000 K
• Power: 280 W
• Electrical voltage: 100–277 V (50/60 Hz)
• Current: 1.22 A at 230 V
• Permissible humidity: 35–85%
• Permissible ambient temperature: 0–60°C
• Protection class: IP65 C
• Maximum service life: 50,000 hours
• Certifications: CE, RoHS, ETL
