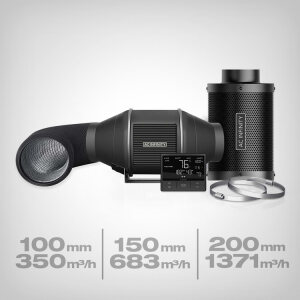

AC Infinity Ventilation Kit with Carbon Filter, 350 m³/h - 1371 m³/h

The complete set for effective ventilation of your grow box

Everything you need to ventilate your grow box in one set: the AC Infinity exhaust air complete set with activated carbon filter makes ventilation easy from assembly to operation. The set includes: the powerful and quiet fan from the CLOUDLINE PRO series. This is ensured by the PMW-controlled EC motor, which also generates no additional heat. With its well-thought-out design and stator blades, it guarantees a powerful airflow that reaches every corner of your grow box. Equally impressive is the long lifespan of 67,000 operating hours, the construction with double ball bearings and the seal against dust and splashing water.

In addition, a carbon filter in a red brass finish and Australian activated carbon are included in the set, which effectively retains odors. The activated carbon has an IAV value of 1200+, which means it cleans the air flow with a higher adsorption rate and a longer lifespan. The powder-coated gunmetal surface also helps to prevent corrosion even at higher humidity.

The fan and carbon filter are connected by a flexible ducting system with four protective layers. The set also includes all the accessories needed for installation: pipe clamps, a pre-filter cloth, cable clamps and hanging straps.

All settings can be easily controlled – even via WiFi

The set's control system, the CONTROLLER 69 PRO, is just as easy to use and well thought out: you can use it to monitor temperature, humidity and VDP so that your plants always have the optimal conditions in your grow tent. You can also program additional settings and adjust the fan power individually.

The AC Infinity app makes the whole thing even more flexible: connected via WiFi, you can access the set's control functions and make changes from anywhere. It is also possible to set programs, alarm functions and notifications at any time. This means you can always keep an eye on your plants' environment and ensure the best conditions.

Notes

The AC Infinity exhaust air complete set is available in three versions for different tent sizes: with an air flow rate of 350 m3/h, 683 m3/h, and 1371 m3/h.

The set is part of the UIS™ platform of attachments and intelligent controls. All components of this platform can be integrated with each other.

Important: The activated carbon filter is not refillable.

The filter performance is optimal at a humidity of up to 55%, from 60% the performance decreases and at a humidity of 70% or more, good performance can no longer be guaranteed.

Technical details

Fan

• Connection: 100 mm
• Dimensions: 18.8 x 30.3 x 17.6 cm
• Power cord length: 183 cm
• Cable length to controller: 183 cm
• Total air flow: 348 m3/h
• Operating noise: 29 dBA
• Static air pressure: 324 Pa
• Electrical voltage: 100–240 V (50/60 Hz)
• Maximum power: 28 W
• Average power: 21 W
• Current: 0.4 A
• Plug: Europlug
• Humidity range: 35–85%
• Temperature range: 0–60℃
• Ingress protection rating: IP44
• Lifespan: 67,000 hours
• Certifications: CE, RoHS, ETL

Controller

• Controllable devices: 4
• Maximum supported power: 10 W
• Input voltage: 9–18 V
• Power: 1 W
• Current: 0.1 A
• Humidity range: 35–85%
• Temperature range: 0–60℃
• Certifications: CE, ETL

Activated carbon filter

• Maximum airflow: 357 m3/h
• Carbon type: Australian Virgin RC412
• Quality: 1200+ IAV
• Humidity range: 35 – 75%
