GrowControl CO2 Kit GrowBase

Simplify carbon dioxide supplementation with the GrowBase complete CO2 set from GrowControl

In order to get the maximum plant mass out of your indoor grow, utilise the amount of light that can be used and reap particularly rich harvests, you should supply your plants with additional carbon dioxide. The set contains everything you need in addition to a suitable CO2 cylinder to control the exact CO2 content.

Powerful controller, extensive functions: Growbase from GrowControl

Of course, you can control more than just CO2 supplementation with the GrowBase. Its four sockets can be switched separately and you can load them with 600 watts each. The eight RS45 outputs can be used to control fans, dim lamps, programme sunrise and sunset functions, implement negative pressure control and record humidity and temperature. Various timer functions are also available. You can even switch contactors and relays via the DC output (MOSFET).

CO2 fitting with pressure reducer, electric valve and flow indicator

The fitting included in the set is fully assembled and fits commercially available CO2 cylinders with a W 21.8x14" thread (DIN477 #6). You can read the residual pressure of the cylinder and the adjustable flow rate per minute on the two displays of the pressure reducer. The electric valve works with 230 volts - so you can control it directly with the GrowBase Lite.

Sensors for carbon dioxide, humidity and room temperature

A CarbSense CO2 sensor is included in the set so that you can precisely determine and adjust the amount of CO2 in the room air. Thanks to its approx. 5 m cable length, it can always be positioned perfectly and its measuring range of 400 - 2000 ppm is more than sufficient. The combined sensor for humidity and temperature always provides you with the current values to create an ideal room climate via the fan control system.

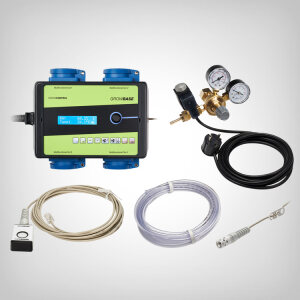

Scope of delivery

• 1x GrowBase
• 1x CO2 fitting
• 1x CarbSense
• 1x sensor for humidity & Temperature
• 1x CO2 hose

Technical details

• GrowBase power supply: 100-240 volts, 50-60 Hz
• Max. Output power sockets: 600 W @ 230 V, 310 W @ 120 V
• Max. Power sockets in total: 1600 W @ 230 V, 840 W @ 120 V
• Power supply CO2 valve: 230 volts, 50-60 Hz
• Flow rate fitting: 5-20 l/min
• DC-Out: 12-24 V, max. 1A
• Length of CO2 hose: approx. 3 metres
• Cable length CarbSense: approx. 5 metres
• CarbSense measuring range: 400-2000 ppm
• Cable length of sensor for humidity & Temperature: approx. 5 metres
• Measuring range humidity/temperature: 20-100% RH / 0-50 °C
