You can achieve the best growing results and rich yields with CO2 supplementation and the CO2 complete set GrowBase Pro from GrowControl
The GrowBase Pro complete CO2 set enables you to reliably enrich the air in your grow box with important CO2 and thus provide your cannabis plants with the perfect conditions for explosive growth. The set includes everything you need in addition to a suitable CO2 bottle to control the exact CO2 content.
The top controller from GrowControl: GrowBase Pro
The GrowBase Pro is the centrepiece of the set and has some interesting additional features compared to the smaller models. Three of the four sockets can be loaded with up to 1200 watts individually, and up to 1600 watts in total. The fourth socket can deliver up to 2300 watts. It has an inrush current limiter and two-pole switch-off, which are important functions for LED grow lights. Using the RJ45 connection, you can even connect up to four Power Extender 4+ to the GrowBase Pro and thus control up to 16 additional sockets individually. The eight RS45 outputs on the side can be used to control fans, dim lamps, programme sunrise and sunset functions, implement negative pressure control and record humidity and temperature. Various timer functions are also available. You can even switch contactors and relays via the DC output (MOSFET).
CO2 fitting with pressure reducer, electric valve and flow indicator
The fitting included in the set is fully assembled and fits commercially available CO2 cylinders with a W 21.8x14" thread (DIN477 #6). You can read the residual pressure of the cylinder and the adjustable flow rate per minute on the two displays of the pressure reducer. The electric valve works with 230 volts - so you can control it directly with the GrowBase Lite.
Sensors for carbon dioxide, humidity and room temperature
A CarbSense CO2 sensor is included in the set so that you can precisely determine and adjust the amount of CO2 in the room air. Thanks to its approx. 5 m cable length, it can always be positioned perfectly and its measuring range of 400 - 2000 ppm is more than sufficient. The combined sensor for humidity and temperature always provides you with the current values to create an ideal room climate via the fan control system.

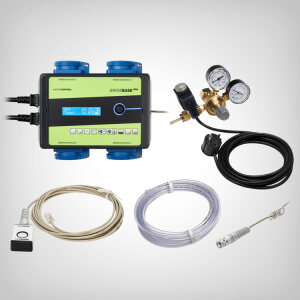

Scope of delivery:
- 1x GrowBase Pro
- 1x CO2 fitting
- 1x CarbSense
- 1x Sensor for humidity & temperature
- 1x CO2 hose
Technical details:
- Power supply GrowBase Pro: 100-240 volts, 50-60 Hz
- Max. Output power sockets 1-3: 1200 W @ 230 V, 620 W @ 120 V
- Max. Power sockets in total: 1600 W @ 230 V, 840 W @ 120 V
- Max. Power socket 4: 2300 W @ 230 V, 1200 W @ 120 V
- Power supply CO2 valve: 230 volts, 50-60 Hz
- Flow rate fitting: 5-20 l/min
- DC-Out: 12-24 V, max. 1A
- Length of CO2 hose: approx. 3 meters
- Cable length CarbSense: approx. 5 meters
- CarbSense measuring range: 400-2000 ppm
- Cable length sensor humidity & Temperature: approx. 5 meters
- Measuring range humidity/temperature: 20-100% RH / 0-50 °C
