GrowControl GrowBase Pro

GrowControl GrowBase Pro

• several sensors of the same type can be used
• Extensive climate control options
• 2-pole disconnect from socket 4
• 8 RJ45 sockets for sensors, EC fan and 0 - 10 V control

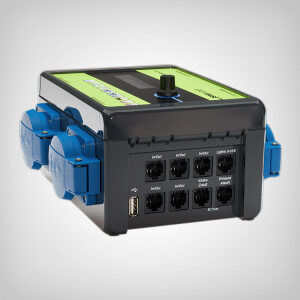

The GrowBase Pro from GrowControl allows you to completely monitor and control your indoor grow via various switching and measuring interfaces. It has four switchable sockets for the operation of devices with 100 - 240 volts, whereby the fourth socket alone can be loaded with 2300 watts. It has an inrush current limiter and is switched to two poles - two features that are recommended for many LED grow lights. Sockets 1 to 3 are rated at 1200 watts individually and 1600 watts in total. So for pro-growers with a power-hungry set-up, this is more than enough power. In addition to the AC sockets, the GrowBase Pro also has eight RJ45 sockets incl. a DC output (MOSFET) with 12 - 24 volts / 1 ampere.

Control for AC, EC and extensive sensor connection options

Whether EC or AC fans and ventilators, grow lamps, pumps, heating mats or CO2 systems - everything can be switched and controlled with the GrowBase Pro! Either the control works via the AC sockets or the RJ45 sockets, there is a suitable connection for every device. Dimmable lights with a compatible 0(1) - 10 volt interface can be controlled in their light output and you can programme gentle sunrise and sunset modes for your plants. Furthermore, it is possible to monitor humidity and temperature in your grow box and influence them, for example, via the performance of the fans, room humidifiers or even an air conditioning system. With the GrowBase Pro you can also regulate the CO2 supply (with or without CO2 sensors) or ensure the negative pressure in the growbox or growroom (so that no odours escape to the outside). With the extensive timer functions (interval and event timer, daytime timer) you can set light times or control your irrigation pumps. Perfect temperature and humidity values, precisely adjusted light levels and, if necessary, cleanly controlled CO2 supplementation always lead to larger harvests and more successful grows.

What can you connect to the 4 AC sockets?

All devices that run on mains power are suitable for the sockets, such as:

• Lights
• Supply and exhaust fans
• Watering pumps
• Humidifiers / dehumidifiers
• Electric auxiliary heaters
• CO2 controls
• Heating mats
• Cooling units / air conditioners

What are the RJ45 sockets for?

You can use the RJ45 interfaces to connect various compatible devices and sensors:

• Luminaires with 0 - 10 V / 1 - 10 V interface
• EC fans for exhaust and supply air
• Sensors for humidity and temperature (included)
• Vacuum sensors
• CO2 sensors
• Temperature sensors for heating mats
• External relays / contactors
• Power extenders (additional sockets)

In order for the GrowBase Pro to provide the high switching capacity on the AC sockets,it requires two mains plugs (included)

There is a handy USB-A port for firmware updates.

• 1x GrowControl GrowBase Pro
• 1x Humidity and Temperature Sensor
• 2x power cable
• 1x screws, dowels and drilling template for wall mounting
• 1x three-hole washer for hanging the sensor
• 1x quick start guide

Technische Details:

• Voltage: 100 - 240 volts / 50 - 60 Hz
• Dimensions (L x W x H): 190 x 170 x 120 mm
• Output power Multifunctional Out 1, 2, 3: 1200 VA (W) at 230 V, 620 VA (W) at 120 V, 5.2 A
• Output power Multifunctional Out 1+2+3: 1600 VA (W) at 230 V, 840 VA (W) at 120 V, 7 A
• Output power Multifunctional Out 4: 2300 VA (W) at 230 V 1200 VA (W) at 120 V, 10 A
• Output Multifunctional Out 5:12 - 24 V DC, 1 A max
• Output current 0 - 10V outputs max: 20 mA
• Adjustable range for temperature: 10 - 50 °C
• Allowable ambient temperature: 10 - 40 °C
• Absolute accuracy Sensor T: ±0.2 %, RH / ±0.2 °C
• Protection type/class: IP42
