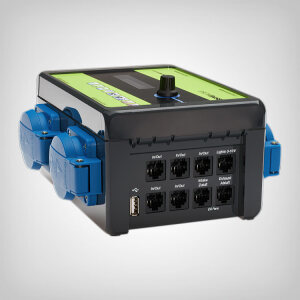

GrowControl GrowBase

GrowControl GrowBase

• 4 digitally switchable sockets
• 8 RJ-45 sockets for EC fans and sensors
• Extensive control options
• Easy to operate, with well-structured menu

With the GrowBase from GrowControl you get full control over all the important parameters of your indoor grow and can control a wide variety of devices. The GrowBase has four switchable outputs with 100 - 240 volts AC à 600 watts, one DC output 12 - 24 volts with max. 1 ampere and eight RJ45 sockets. Operation via rotary knob and buttons is extremely intuitive and easy to handle - you have programmed all parameters in just a few steps!

Comprehensive control options via different outputs

Whether you want to switch EC or AC fans and ventilators, your grow lights, pumps, heating mats or CO2 systems, this works either via the sockets or the RJ45 sockets. Luminaires with a 0(1) - 10 volt interface can be controlled in their brightness, if they are dimmable, and you can programme sunrise and sunset modes that are gentle on your plants. Furthermore, it is possible to monitor humidity and temperature in your growbox and, for example, to influence the performance of the fans or room humidifiers, to regulate the CO2 supply or to ensure negative pressure in the growbox or growroom. With the extensive timer functions (interval and event timer, daytime timer) you can set light times or control your irrigation pumps.

What can be controlled via the 4 sockets?

You can connect a wide variety of AC devices to the sockets, e.g.:

• Lights
• Supply and exhaust fans
• Irrigation pumps
• Humidifiers / dehumidifiers
• CO2 controls
• Heating mats

What is suitable for connection to the RJ45 sockets?

Diverse compatible devices and sensors can be operated on the RJ45 interfaces:

• Luminaires with 0 - 10 V / 1 - 10 V interface
• EC fans for exhaust and supply air
• Humidity and temperature sensor (included)
• Vacuum sensor
• CO2 sensor
• External relays / contactors

For firmware updates, the GrowBase from GrowControl has a USB-A port.

Scope of delivery:

• 1x GrowControl GrowBase
• 1x humidity and temperature sensor
• 1x power cable
• 1x screws, dowels and drilling template for wall mounting
• 1x three-hole disc for hanging the sensor
• 1x quick start guide

Technical details:

• Voltage: 100 - 240 volts / 50 - 60 Hz
• Dimensions (L x W x H): 190 x 170 x 120 mm
• Output power max. multifunctional out 1 - 4: 600 VA (W) at 230 V, 310 VA (W) at 120 V, 2.6 A
• Output power max. Multifunctional Out 1+2+3+4: 1600 VA (W) at 230 V 840 VA (W) at 120 V, 7 A
• Output Multifunctional Out 5:12 - 24 V DC, 1 A max.
• Output current 0 - 10V outputs max: 20 mA
• Adjustable range for temperature: 10 - 50 °C
• Allowable ambient temperature: 10 - 40 °C
• Absolute accuracy sensor T: ±0.2 %, RH / ±0.2 °C
• Protection type/class: IP42
