Expand your GrowBase Pro with 4 sockets! With the GrowControl Power Extender 4+

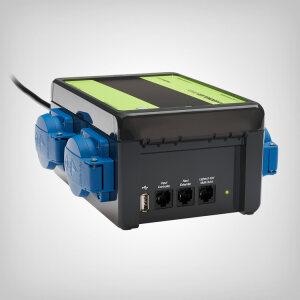

With the PowerExtender 4+ from GrowControl, you can add four controllable sockets to your GrowBase Pro in no time at all. As soon as you have connected the PowerExtender 4+ with the RJ45 cable included in the scope of delivery, the additional sockets are displayed in the menu and you can assign functions to them. Two of the four sockets (2&4) can be loaded with up to 2300 watts. All sockets are switched off with two poles and have a limit for the inrush current (recommended for LED grow lights). The PowerExtender 4+ also has a MOSFET DC output for contactors and relays (Lights 0-10V - Multi Out 5) or for controlling compatible lights. One to three further extenders can be connected via RJ45 using the "Next Extender" output. The housing is protected against dripping water (IP42) and is supplied with a wall bracket and two metre long mains cables.
Scope of delivery:
- 1x GrowControl Power Extender 4+
Technical details:
- Dimensions: 190 x 170 x 120 mm (LxWxH)
- Mains voltage: 100-240 volts
- DC output: max.1A, 12-24 volts
- Output current 0-10 volts: max. 20 mA
- Output power max. Multi Out 1&3 (each):600 watts at 230V / 310 watts at 120V
- Output power max. Multi Out 2&4 (each):2300 watts at 230V / 1200 watts at 120V
- Output power max. Multi Out 1&2 toal):2300 watts at 230V / 1200 watts at 120V
- Output power max. Multi Out 3&4 (total):2300 watts at 230V / 1200 watts at 120V
- Power cable: 2x 2 metres
GrowControl Power Extender 4+ Operating Instructions
