Prima Klima Klimacontroller EC Temp RJEC

Prima Klima Climate Controller EC Temp RJEC

• reliable temperature control
• better fan adjustment
• Convenient one-button operation
• Automatic and manual mode

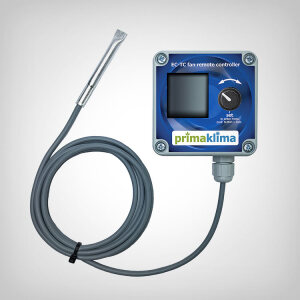

With the climate controller EC Temp RJEC from PrimaKlima, the fan and thus the temperature in the grow room can be controlled easily and reliably.
All necessary information can be easily checked on the display. Via the practical one-button operation, the fan speed (max/min), the set temperature and the current temperature can be easily read or set.The climate controller can be operated in an automatic mode as well as manually. In automatic mode, the climate controller regulates the fan according to the respective preset values.
Via the approx. 180 cm long temperature sensor, the climate controller can also be operated very well from outside the grow room.

Installation instructions

• Use a standard LAN cable to connect the climate controller to the EC fan
• Pressing the knob for more than 2 seconds will enter the menu
• Turning it takes you to the Set temperature menu. Pressing it briefly activates the setting mode. Now the desired set temperature can be set.
• By further pressing and turning one comes into the menu Min. Speed, respectively Max. Speed. Set desired values accordingly.
• Sollte the fan is too loud, so that can be regulated via a throttling of the Max. Speed regulate.
• By pressing again, you reach the Quit menu. Pressing the rotary control again saves and activates the program
• When the set target temperature is reached, the climate controller ramps up the EC fan to the set Max. Speed up and the corresponding cooling of the grow room is achieved. In the same way, the climate controller reacts when the temperature falls below the set target temperature. The fan is retracted.
• Using the Quit to Manual menu, the manual mode can be activated

Prima Klima Climate Controller EC Temp RJEC

• Voltage: 5V
• Current: 3mA
• Output voltage: 0 - 10 volts
• Variably dimmable from: 0 - 100%
• Adjustable temperature range: +10 to +50°C
• Protection class: IP34
• Material: plastic
• Length temperature sensor: approx. 180 cm
• Connection: RJ45
