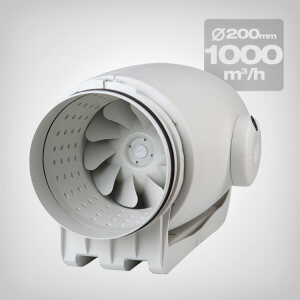

S&P duct fan TD1000/200 Ecowatt, ultra-quiet

The S&P tube fan TD-1000/200 Ecowatt: High air throughput with low power consumption and quiet operation

• With non-combustible sound insulation lining
• Lightweight polypropylene housing
• Flat design - perfect for use in grow boxes
• EC motor, volume flow up to 1000 m³/h
• Speed adjustable via signal input 0-10 V or internal potentiometer
• Motor can be easily removed for maintenance and cleaning

The TD-1000/200 Ecowatt is equipped with a modern and energy-saving EC motor, is only around 33 cm high, works quietly and is therefore perfect for your indoor grows.

Especially quiet thanks to internal sound insulation, EC motor and semi-radial impellers made of ABS plastic.

The ingenious design of the fans from Soler & Palau ensures particularly quiet operation. The impellers made of ABS plastic are statically and dynamically balanced and the high-quality EC motor with sealed ball bearings is designed for continuous operation. The special sound insulation lining is non-flammable (A2) and absorbs most of the noise generated. At a volume flow of 485 m³/h, the TD-1000/200 Ecowatt emits only 25 dB(A). You can of course reduce this value even further with a sound-insulated exhaust air hose. The fans from S&P offer outstandingly quiet running. You don't have to worry about the humming and vibrations that often occur with standard fans. The already very low-vibration EC motor is also fitted with vibration-damping seals and the aerodynamically optimised airflow channel reduces the generation of noise. With a length of just 56.8 cm and a height of only 32.7 cm, this fan fits well in smaller grow rooms and grow boxes.

Infinitely variable, easy to clean and maintain

The TD-1000/200 Ecowatt tube fan is equipped with an internal potentiometer for infinitely variable speed control. It also has an input for external control signals with 0-10 volts. At full speed, the tube fan has a maximum air flow rate of 1000 m³/h and consumes only an economical 99 watts. To service or clean the fan, you can easily remove the motorised impeller unit without dismantling the pipework

Scope of delivery:

• 1x S&P pipe fan TD-1000/200 Ecowatt

Technical details:

• Voltage: 230 V
• Power consumption: max. 99 W
• Weight: 8.7 kg
• Length: 568 mm
• Height: 327 mm
• Width: 327 mm
• Air flow: 0-1000 m³/h
• Sound pressure level: max. 34 dB(A)
• Connecting flange: 200 mm
• Engine: EC
