The super-quiet miracle fan - the sound-absorbent extraction fan from S&P.
The Ferrari among fans - with the crucial difference that while the Italian sports cars can be rather noisy, the precision motor here works in almost complete silence!
The TD-1000/200 is a high performance extraction fan with amazing specs. It catches the eye with its clever and elegant design, which allows you to remove the entire motor unit from the wall bracket with little effort, and the cable port can also be flexibly repositioned to suit your personalised setup.
However, the TD-1000/200 doesn't just look good on the outside. Its patented, double-walled housing comes with a powerful silencer, making the device almost inaudible even at full power (> 35 dBA, so approximately as loud as our own breathing!). Out of the box, the TD-1000/200 can be operated at two output levels, but it can also be controlled via an external climate controller (either analogue or digital).
With a power consumption of just 130, 127 or 122 W (depending on the power level), this technical marvel can reach air flow levels of up to 1040 m3/h (910 m3/h, 790 m3/h at the lowest level). The exceptional efficiency is possible thanks to the semi-radial fan technology.
The wall-ceiling mount also acts as a connector for supply and exhaust hoses, and an ACF (activated carbon filter) can also be attached using an optional fast clamp. Unlike other wall-ceiling mounts, this one can even be used in a grow tent, where it can simply be "strapped" beneath the upper rod with cable ties or mounting belts.
Suitable accessories: 5-stage transformer Sentera STR 0,8A
Warning: The device must not be grounded!
Note: Power cable not included in the delivery! Moisture-resistant cables (min. 3x 0.75 mm2) with shock-resistant sockets are required for operation.
Note: Use of an activated carbon filter can potentially reduce the fan performance values stated here. This is due to the system and does not count as a defect.

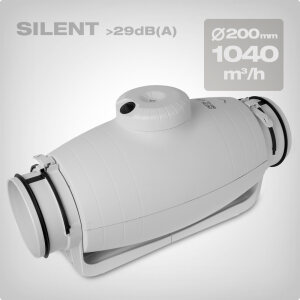

S&P duct fan TD1000/200, ultra-quiet
- Manufacturer: Soler & Palau
- Connector diameter: 200 mm
- Adjustable: Yes, 3 speed levels, can be selected via cable.
- Output: 130 W / 127 W / 122 W
- Voltage: 230 V, 50 Hz
- Current: 0.55 A / 0.55 A / 0.53 A
- Flow volume: 1040/910/790 m3/h
- > 29 dBA /> 28 dBA /> 26 dBA
Delivery contents:
- 1x S&P mixed-flow duct fan TD1000/200, ultra-quiet
- 1x screw set for optional wall mounting
- Weight: approx. 8.7 kg
Note: Cabling work is required. It should only be connected by an authorised specialist. The legal requirements (VDE guidelines) must always be satisfied. The company CRP Import-Export GmbH assumes no liability or warranty for damage to objects and persons caused by improper connection.
Warning: The device must not be grounded!
More on the subject of Indoor Growing:
Grow lights, electricity costs calculator, home growing instructions, grow kits
S&P TD silent Instruction Manual
S&P TD silent Data Sheet
| Connection: | 200mm |
