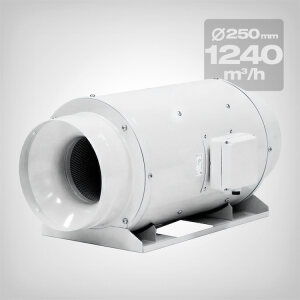

S&P duct fan TD1300/250 Ecowatt, ultra-quiet

The S&P tube fan TD-1300/250 Ecowatt: High air throughput with low power consumption and quiet operation

• With non-combustible sound insulation lining and metal housing
• Flat design - perfect for use in grow boxes
• EC motor, volume flow up to 1240 m³/h
• Speed adjustable via signal input 0-10 V or internal potentiometer
• Motor can be easily removed for maintenance and cleaning

The TD-1300/250 Ecowatt is equipped with a modern and energy-saving EC motor, is only around 33 cm high, operates quietly and is therefore perfect for your indoor grows.

Especially quiet thanks to internal sound insulation, EC motor and semi-radial aluminium impellers.

The ingenious design of the fans from Soler & Palau ensures particularly quiet operation. The aluminium impellers are statically and dynamically balanced and the high-quality EC motor with sealed ball bearings is designed for continuous operation. The special sound insulation lining is non-flammable (A2) and absorbs most of the noise generated. At a volume flow of 580 m³/h, the TD-1300/250 Ecowatt emits only 25 dB(A). You can of course reduce this value even further with a sound-insulated exhaust air hose. The fans from S&P offer outstandingly quiet running. You don't have to worry about the humming and vibrations that often occur with standard fans. The already very low-vibration EC motor is also fitted with vibration-damping seals and the aerodynamically optimised airflow channel reduces the generation of noise. With a length of just 68 cm and a height of only 33 cm, this fan fits well in smaller grow rooms and grow boxes.

Infinitely variable, easy to clean and maintain

The TD-1300/250 Ecowatt tube fan is equipped with an internal potentiometer for infinitely variable speed control. It also has an input for external control signals with 0-10 volts. At full speed, the tube fan has a maximum air flow rate of 1240 m³/h and consumes only an economical 143 watts. To service or clean the fan, you can simply remove the motor from the housing. You don't need to remove the pipework for this.

Scope of delivery:

• 1x S&P pipe fan TD-1300/250 Ecowatt

Technical details:

• Voltage: 230 V
• Power consumption: max. 143 W
• Weight: 9.5 kg
• Length: 680 mm
• Height: 331 mm
• Width: 387 mm
• Air flow: 0-1240 m³/h
• Sound pressure level: max. 34 dB(A)
• Connecting flange: 250 mm
• Engine: EC
