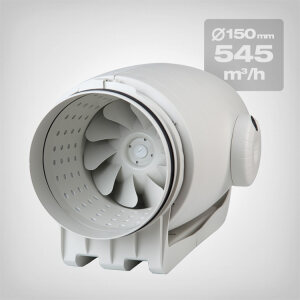

The S&P tube fan TD-500/150 Ecowatt: High air throughput with low power consumption and quiet operation
- With non-combustible sound insulation lining
- Lightweight polypropylene housing
- Flat design - perfect for use in grow boxes
- EC motor, volume flow up to 545 m³/h
- Speed adjustable via signal input 0-10 V or internal potentiometer
- Motor can be easily removed for maintenance and cleaning
The TD-500/150 Ecowatt is equipped with a modern and energy-saving EC motor, is only around 27 cm high, works quietly and is therefore perfect for your indoor grows.
Especially quiet thanks to internal sound insulation, EC motor and semi-radial impellers made of ABS plastic.
The ingenious design of the fans from Soler & Palau ensures particularly quiet operation. The impellers made of ABS plastic are statically and dynamically balanced and the high-quality EC motor with sealed ball bearings is designed for continuous operation. The special sound insulation lining is non-flammable (A2) and absorbs most of the noise generated. At a volume flow of 240 m³/h, the TD-500/150 Ecowatt emits only 23 dB(A). You can of course reduce this value even further with a sound-insulated exhaust air hose. The fans from S&P offer outstandingly quiet running. You don't need to worry about the humming and vibrations that often occur with standard fans. The already very low-vibration EC motor is also fitted with vibration-damping seals and the aerodynamically optimised airflow channel reduces the generation of noise. With a length of just 48.4 cm and a height of only 27.4 cm, this fan fits well in smaller grow rooms and grow boxes.
Infinitely variable, easy to clean and maintain
The TD-500/150 Ecowatt tube fan is equipped with an internal potentiometer for infinitely variable speed control. It also has an input for external control signals with 0-10 volts. At full speed, the tube fan has a maximum air flow rate of 545 m³/h and consumes only an economical 39 watts. To service or clean the fan, you can easily remove the motorised impeller unit without dismantling the pipework
Scope of delivery:
- 1x S&P pipe fan TD-500/150 Ecowatt
- Rubber lip seal for 160 mm exhaust pipes
Technical details:
- Voltage: 230 V
- Power consumption: max. 39 W
- Weight: 6 kg
- Length: 484 mm
- Height: 274 mm
- Width: 274 mm
- Air flow: 0-545 m³/h
- Sound pressure level: max. 33 dB(A)
- Connecting flange: 150 mm
- Engine: EC
S&P TD silent Ecowatt Instruction Manual
S&P TD silent Ecowatt Data Sheet
| Connection: | 150mm |
