The complete set for ventilation for grow tents or small to mid-sized grow rooms. Connector diameter: 160 mm
The 800 PRO ventilation kit includes a powerful extraction fan, a long-lasting carbon filter, and all accessories needed to connect these components to create a highly efficient ventilation system.
The extractor fan by PrimaKlima can be operated at 2 output levels (65W / 100W), which means that this device is versatile and can be adjusted to suit various ventilation needs, even without a dimmer (optional). With an impressive flow volume of 420 or 800m³/h, this device can be implemented for ventilation in an XL or XXL grow tent, whereby the carbon filter also cleanses the air of any undesirable odours or pollutants (which would otherwise collect in the fan and reduce its lifetime).
This set is perfectly suited for ventilating a grow tent with lamps up to max. 600W. The carbon filter and fan are mounted in the box, and the exhaust air is extracted from the box via the flexible ducting. This usually creates enough air pressure in the grow tent to draw fresh air into the grow tent via the (open) air inlets, which removes the need for an additional air intake system.
For ventilating mid-sized to large grow rooms, we recommend using an additional fan for the air intake (e.g. PrimaKlima 125AL fan) to provide sufficient air circulation in the room (e.g. with optional recirculation fans).
Equipment included in the set:
- Extraction fan with 420/800m³/h flow volume
- Bracket for mounting the fan on a wall (optional)
- Compatible carbon filter with 160 mm-connector
- Fast clamp for connecting the fan directly to the carbon filter
- 3.30 m flexible ducting for extracting exhaust air
- Hose clamps for connecting the ventilation ducting
Note: All components included in the set are designed for a connector diameter of 160 mm. For use in smaller grow tents or when connecting to existing equipment, please ensure that the grow tent's /equipment's air outlets are compatible with the size of the ducting.
Note: The performance values of the fan stated here could potentially be reduced when using a carbon filter. This is to be expected and is not considered to be a defect.
Tip: The set can also be used for climate control in grow rooms, in combination with a climate control device that manages the ventilation performance based on temperature.
Technical Data:
Connector diameter: 160 mm
Adjustable fan: Yes, switch for 2 speed levels
Output: 65W / 100W
Voltage: 220-240V, 50Hz
Current: 0.5A / 0.65A

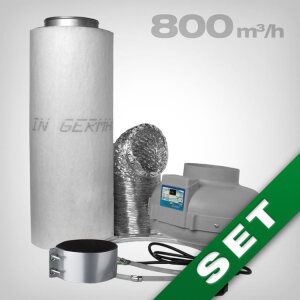

Delivery contents:
1x PK extraction fan 160 AL, 2 levels, 420/800 m³/h
1x power supply with flexible moisture resistant cable 0.75 mm², L = 1.5m
1x wall mounting bracket
1x carbon filter ECONOMY LINE for fan up to 780 m³/h, diameter = 160 mm
1x fast clamp 160 mm
1x flexible ducting, diameter = 162 mm, L= 3.30 m
2x universal hose clamps 60 - 325 mm
Weight: approx. 13kg
| Connection: | 160mm |
