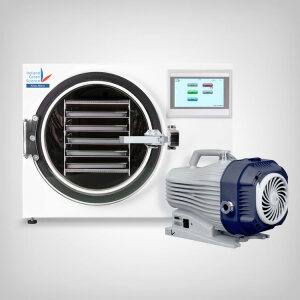

Xiros Micro Freeze Dryer with Anemos Vacuum Pump

Xiros Micro Freeze Dryer with Anemos Vacuum Pump

Features & Benefits:

• CE certified
• Market leading ice holding capacity for larger batches or longer defrost intervals
• Easy load due to low profile machine design
• High quality and performance components from leading suppliers
• Designed to run 24/7
• High performance vacuum technology fittings and connectors used (instead of refrigeration technology components)
• Commercial Grade 2 Year Warranty
• Defrost Function by shelf heating

Specifications:

• Up to 9 stainless steel shelves (to your preference)
• Ice Condenser Volume = 11 Liter
• Ice Condenser Capacity = 8kg Noise Level (without vacuum pump): 54 dB(A)
• Ice Condenser Performance = 4kg in 24h
• Ice condenser Temperature -40 °C
• Minimum Shelf Temperature for Freezing -35 °C
• Maximum Shelf Temperature for Drying +60 °C
• Shelf Temperature Accuracy +/- 3 °C
• Typical Product Capacity = 9.6 kg at 80% moisture content
• Ultimate Vacuum 2.5 x 10-2 mbar
• Maximum Vacuum Pump Current: 3A
• Refrigerant R290
• Noise Level (without vacuum pump): 54 dB(A)

Controller:

• Interfaces USB, RS232C
• 5” colour touchscreen
• Programmable to suit specific applications e.g. to reduce the loss of quality of the goods
• Manual Operation options
• Automatic drying cycle
• USB connectivity for software upgrades and data logging

Technical Details:

• Tray Size up to 9 shelf: 200 x 450 x 15 mm
• M2 tray space (depending of tray assembly): from 0,27 up to 0,8 M2
• Shelf Distance: 9 shelves = 19 mm
• External Dimensions: 770 (d) x 748 (w) x 507 (h) mm
• Weight: 87 kg
• Electrical: 220V +/-15% 50Hz 8.5A without pump, 11.5A with pump (model dependent)

Features & Beneftis:

• CE Certified
• Quiet operation for a better work environment
• Oil and hydrocarbon free vacuum to prevent product contamination
• High water vapor capacity
• Perfect for laboratory applications such as freeze drying and distillation
• Low cost of ownership thanks to robust design, class leading service interval and zero-waste-oil-disposal

Technical Details:

• Displacement: 12 m3/h
• Ultimate Vacuum: 0.008 mbar
• Motor Power: 400 W
• Nominal Rotation Speed: 1800 rpm
• Voltage: Input 1-phase 220V
• Dimensions: 430 (d) x 255 (w) x 290 (h) mm
• Noise Level: 54 dB(A)
• Inlet Flange: NW 25
• Exhaust Flange: NW 25
• Max Water Vapor Pumping Rate: 100 gh-1
• Leak Tightness: < 1×10-6 mbar·l/s
• Weight: 28 kg
• Operating Temperature: 5 – 40 °C
• Cooling System: Air-Cooled

Scope of delivery:

• 1x Freeze Dryer Xiros Mikro
• 1x Vakuumpump Anemos
• 5x stainless steel trays
• 1x Vacuum hose incl. connectors
• Clamps and sealing rings
• Drain hose
• Quick Setup Card

Carriage delivery: This item will be shipped on a pallet with wooden fittings by carrier. We need herefür mandatory a phone number für the coordination of the delivery date. For the acceptance of the delivery should be present two people, as well as tools to öffnen the pallet be kept ready.

Additional content and a description of this product to follow shortly.
